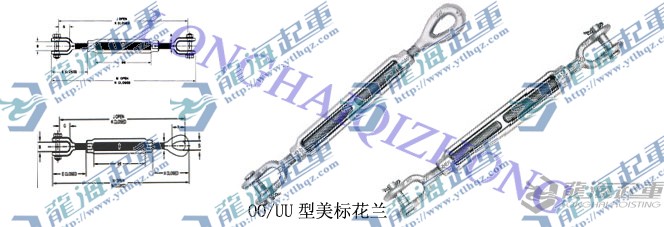

高强度美标花兰参数：

型号	额定载荷T	A mm	B mm	G mm	J mm	K mm	M mm	N mm	BB mm	重量Kg/PC
1/4X4	0.23	6.35	10.41	15.75	288.29	186.69	306.85	204.98	101.6	0.14
5/16X41/2	0.36	7.87	11.94	22.10	348.32	221.23	355.85	241.55	114.3	0.23
3/8X6	0.54	9.65	12.70	22.10	426.97	274.57	451.36	298.96	152.4	0.36
1/2X6	1.00	12.7	16.00	26.92	489.97	312.17	520.19	342.39	152.4	0.68
1/2X9	1.00	12.7	16.00	26.92	642.37	388.37	672.59	418.59	228.6	0.78
1/2X12	1.00	12.7	16.00	26.92	794.77	464.57	824.99	494.79	304.8	0.94
5/8X6	1.59	16.0	19.00	33.27	533.15	349.00	572.26	388.11	152.4	1.07
5/8X9	1.59	16.0	19.00	33.27	685.55	425.20	724.66	464.31	228.6	1.44
5/8X12	1.59	16.0	19.00	33.27	837.95	501.40	877.06	540.51	304.8	1.64
3/4X6	2.36	19.0	23.88	38.10	576.33	385.83	625.09	434.59	152.4	1.81
3/4X9	2.36	19.0	23.88	38.10	728.73	462.03	777.49	510.79	228.6	2.15
3/4X12	2.36	19.0	23.88	38.10	881.13	538.23	929.89	586.99	304.8	2.69
3/4X18	2.36	19.0	23.88	38.10	1185.9	690.63	1234.7	739.39	457.2	3.18
7/8X12	3.27	22.4	28.70	44.45	916.69	567.44	973.3	624.08	304.8	3.79
7/8X18	3.27	22.4	28.70	44.45	1221.5	719.84	1278.1	776.48	457.2	4.42
1X6	4.54	25.4	30.23	52.32	669.04	465.84	733.8	530.61	152.4	4.05
1X12	4.54	25.4	30.23	52.32	973.84	618.24	1038.6	638.01	304.8	5.08
1X18	4.54	25.4	30.23	52.32	1278.6	770.64	1343.4	835.41	457.2	6.03
1X24	4.54	25.4	30.23	52.32	1583.4	923.03	1648.2	987.81	609.6	7.71
11/4X12	6.89	31.75	44.45	71.37	1049.5	681.23	1131.6	763.27	304.8	8.81
11/4X18	6.89	31.75	44.45	71.37	1354.3	833.63	1423.7	915.67	457.2	10.97
11/4X24	6.89	31.75	44.45	71.37	1659.1	986.03	1741.2	1068.1	609.6	12.93
11/2X12	9.71	38.10	52.32	71.37	1104.9	723.90	1200.2	819.15	304.8	13.15
11/2X18	9.71	38.10	52.32	71.37	1409.7	876.30	1505.0	971.55	457.2	15.88
11/2X24	9.71	38.10	52.32	71.37	1714.5	1028.7	1809.8	1124.0	609.6	17.77
13/4X18	12.70	44.45	60.45	85.85	1406.7	945.45	1518.4	1061.2	457.2	24.38
13/4X24	12.70	44.45	60.45	85.85	1711.5	1101.9	1823.2	1213.6	609.6	37.52
2X24	16.78	50.80	63.50	93.73	1844.6	1235.0	1979.9	1370.3	609.6	40.37
21/2X24	27.22	63.50	73.15	112.70	1925.3	1315.7	2093.0	1483.4	609.6	68.04
23/4X24	34.02	69.80	88.90	106.40	1978.2	1368.6	2171.7	1562.1	609.6	83.01

 高强度螺旋扣参数：

型号	安全载荷	L2/L4/L6	L1/L3/L5	A(mm)	B(mm)	D(mm)	E(mm)	F(mm)
GH3401	10t	600	800	70	50	40	50	110
GH3402	10t	700	1000	70	50	40	50	110
GH3403	16t	660	860	80	56	45	56	120
GH3404	16t	820	1120	80	56	45	56	120
GH3405	25t	800	1100	90	60	56	60	140
GH3406	25t	900	1300	90	60	56	60	140
GH3407	40t	880	1180	100	70	64	70	160
GH3408	40t	980	1380	100	70	64	70	160
GH3409	50t	900	1300	110	75	68	80	180
GH3410	50t	1000	1400	110	75	68	80	180
GH3411	60t	1080	1480	120	80	72	80	180
GH3412	60t	1280	1880	120	80	72	80	180
GH3413	80t	1180	1580	140	85	80	90	210
GH3414	80t	1380	1980	140	85	80	90	210
GH3415	100t	1220	1620	160	90	85	100	240
GH3416	100t	1420	2020	160	90	85	100	240
GH3417	120t	1280	1680	180	95	90	100	280
GH3418	120t	1480	2080	180	95	90	100	280
